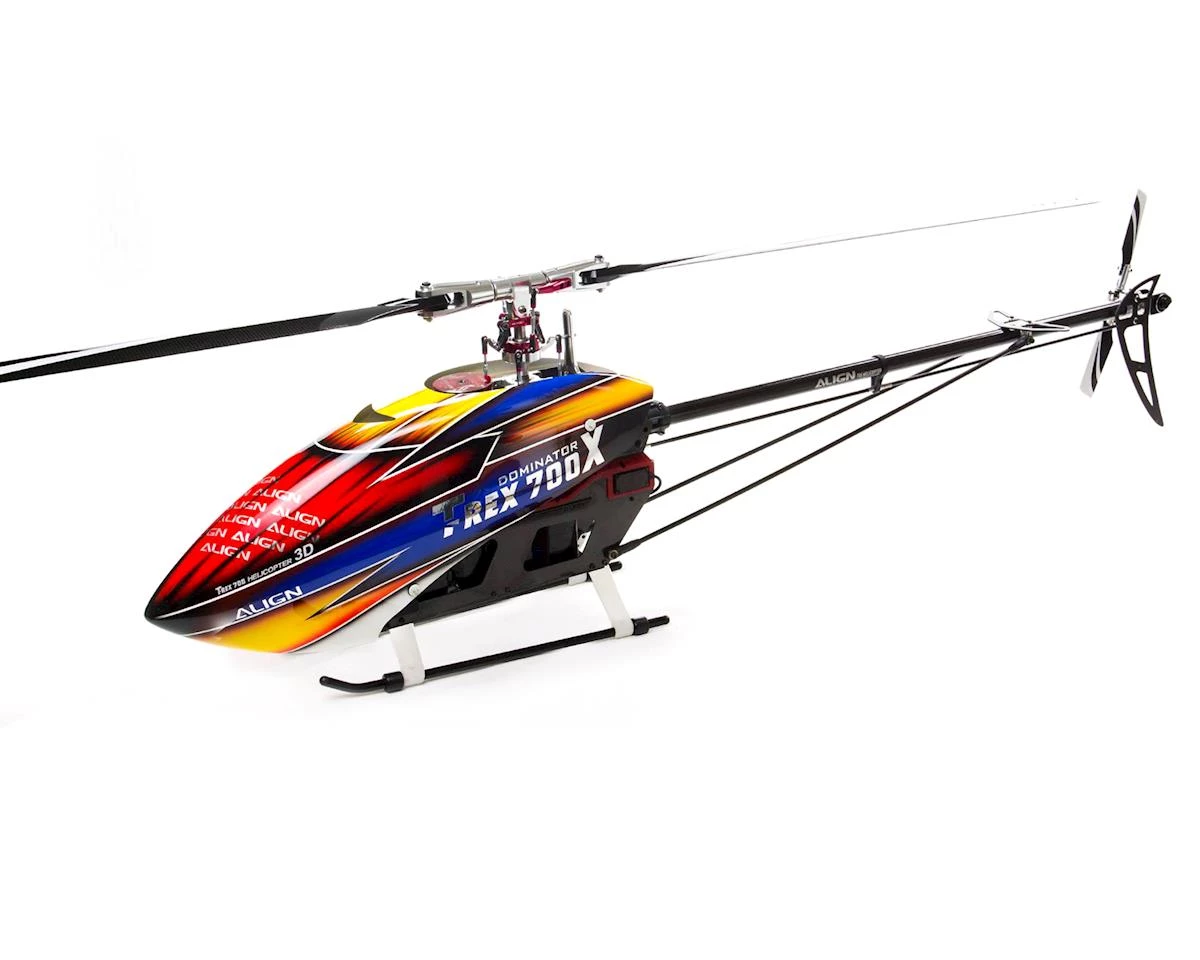

Align T-REX 700X Dominator Helicopter Kit w/ Motor

This is the Align T-REX 700X Dominator Super Combo. Align’s 2016 flagship T-Rex 700X Dominator incorporates top shelf upgrades. The biggest improvement over the prior models is that Align has focused on lowering the all up weight of the model by nearly 400g. The superior control feel and attractive look make the T-Rex 700X Dominator a great choice for discriminating 3D enthusiasts.

Outstanding materials and superior design concepts, with the elaborate matte black carbon fiber structure and stunning red Follower Arm (FL) rotor head set, aluminum anti-rotation bracket, and torque tube drive gear set dramatically enhance strength and aesthetics, providing a professional grade helicopter to the masses.Lastly, the kit version supplies the tried and true Align 850MX 490kV powerhouse motor, designed for extreme 3D flying styles.

Features:

• The 700 FL flybarless rotor head system utilizes extreme low CG design, effectively reduces resistance during flight, increased flight responsiveness and precision.
• CNC Reinforcement Plate is designed to strengthen the newly designed narrow upper body design, and additionally act as a heat sink for the motor. Tests have indicated that a decrease in up to 20 degrees Celsius has been recorded.
• Elaborate matte black carbon fiber material on main frame and tail boom, bring much more stylish and delightful presentation than others.
• Carbon tailboom uses carbon fiber and aluminum imbedded technology, features light weight and high strength, its unique matting carbon color make your helicopter stand out at the flying field.
• High quality tail gearbox design, combined with dual point mounted tail pitch control assembly to minimize slop and increase rudder control precision.
• A 5 degree nose down attitude aids in keeping the tail rotor out of grass or weeds, and improves crash durability.
• Lightweight design, dropping nearly 400g in weight.
• Thicker Main Gear for improved power handling and durability.

Specification:
Length: 1320mm
Height: 360mm
Width: 220mm
Main Blade Length: 700mm
Main Rotor Diameter: 1582mm
Tail Rotor Diameter: 281mm
Motor Drive Gear: 13T
Main Drive Gear: 110T
Autorotation Tail Drive Gear: 104T
Tail Drive Gear: 22T
Drive Gear Ratio: 1: 8.46: 4.72
Weight (RTF – Estimated, Depending on Set Up): 5100g

Includes:

• (1) T-Rex 700X Dominator Kit
• (1) 700 Carbon Fiber Blade set
• (1) 106mm 3K Carbon Fiber Tail Blade set
• (1) 3K Carbon Fiber Tail Boom
• (1) 850MX Brushless Motor (490KV)

Needed to Complete:

• Transmitter (7-channel or more, helicopter system)
• Receiver (7-channel or more)
• (2) 6S Li-Po 4500 ~ 5200mAh
• Digital Pitch Gauge
• (3) BL820M High Voltage Brushless Servo
• (1) BL825M High Voltage Brushless Servo
• (1) Align RCE-BL130A 130A ESC
• (1) Microbeast PLUS Flybarless system

This product was added to our catalog on October 28, 2016
