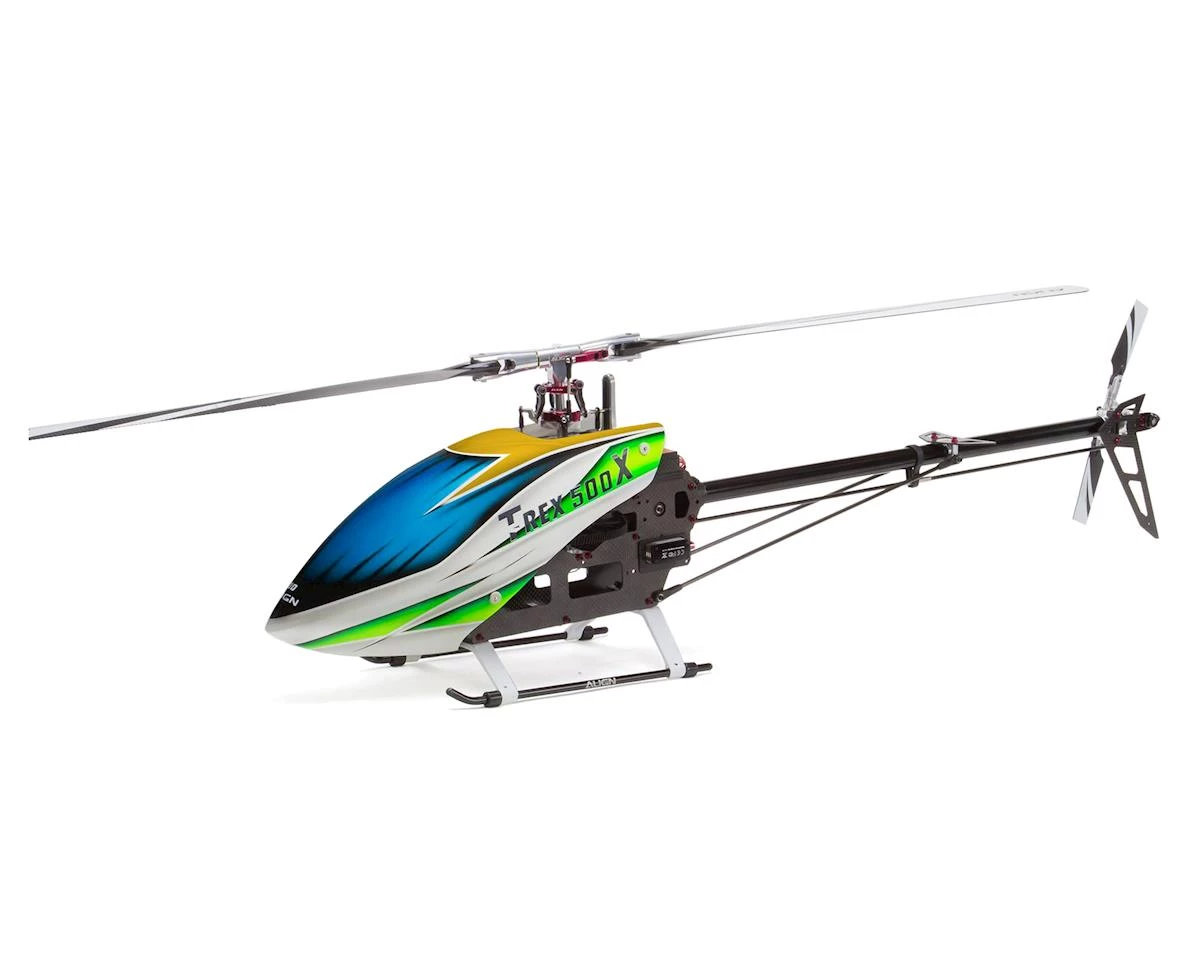

Align T-Rex 500X Super Combo Helicopter Kit w/BeastX Plus

The Align T-Rex 500X is a refreshing revision of the ever popular 500 class helicopter! Featuring many new updates such as the FL Rotor Head System, larger 470mm main blades, tail rotor belt driven system, & sliding battery tray system. All of the updates both physically and electronically are built to deliver one of the best 500 class flight experiences to date! Typically smaller helicopters are not as stable, and not as powerful as their larger class brothers. The 500X changes this concept drastically and is as stable as it’s larger brothers.

Features at a Glance

• 470mm Main Blades: The larger 470mm main blades aid in providing more stability, power, and performance.
• 500FL Rotor Head System: Replacing the DFC system, the FL Rotor Head offers excellent stability, a high level of responsiveness, and precision in flight.
• Belt Driven Tail System: Improved tail belt system, offering a lower parts count, quick & easy access to belt tension adjustments, and low cost of maintenance.
• Align 520MX Brushless Motor: High efficiency, excellent power, high torque, & low current draw.
• Align RCE-BL80X ESC: Designed for the 500X and providing current output, with additional support for high voltage BEC output (6V-8.4V).
• Align Cyclic & Rudder Servos: Equipped with the DS 530M & DS535M High Voltage Servos, the 500X will benefit from the available high torque and high speed outputs the DS530 & 535HV offer.

Specifications:
Length: 935mm
Height: 259mm
Main Blade Length: 470mm
Main Rotor Diameter: 1054mm
Tail Rotor Diameter: 219mm
Motor Drive Gear: 12T
Main Drive Gear: 134T
Tail Drive Gear: 21T
Drive Gear Ratio: 11.17:1:3.81
Weight (With Motor): 1400g

Includes:

• T-REX 500X Super Combo Kit
• (1) Microbeast PLUS Flybarless System
• (1) 520MX Brushless Motor (1600KV)
• (1) RCE-BL80X Brushless ESC
• (1) Set of 470mm Carbon Fiber Blades
• (1) Set of 78mm Tail Rotor Blades
• (3) DS530M Aluminum Case Digital Servos
• (1) DS535M Aluminum Case Digital Servo

Needed to Complete:

• 7-channel or more, helicopter transmitter & receiver
• 6S Li-Po 2600 ~ 3300mAh (3300mAh recommended)
• Digital Pitch Gauge

This product was added to our catalog on March 10, 2017
