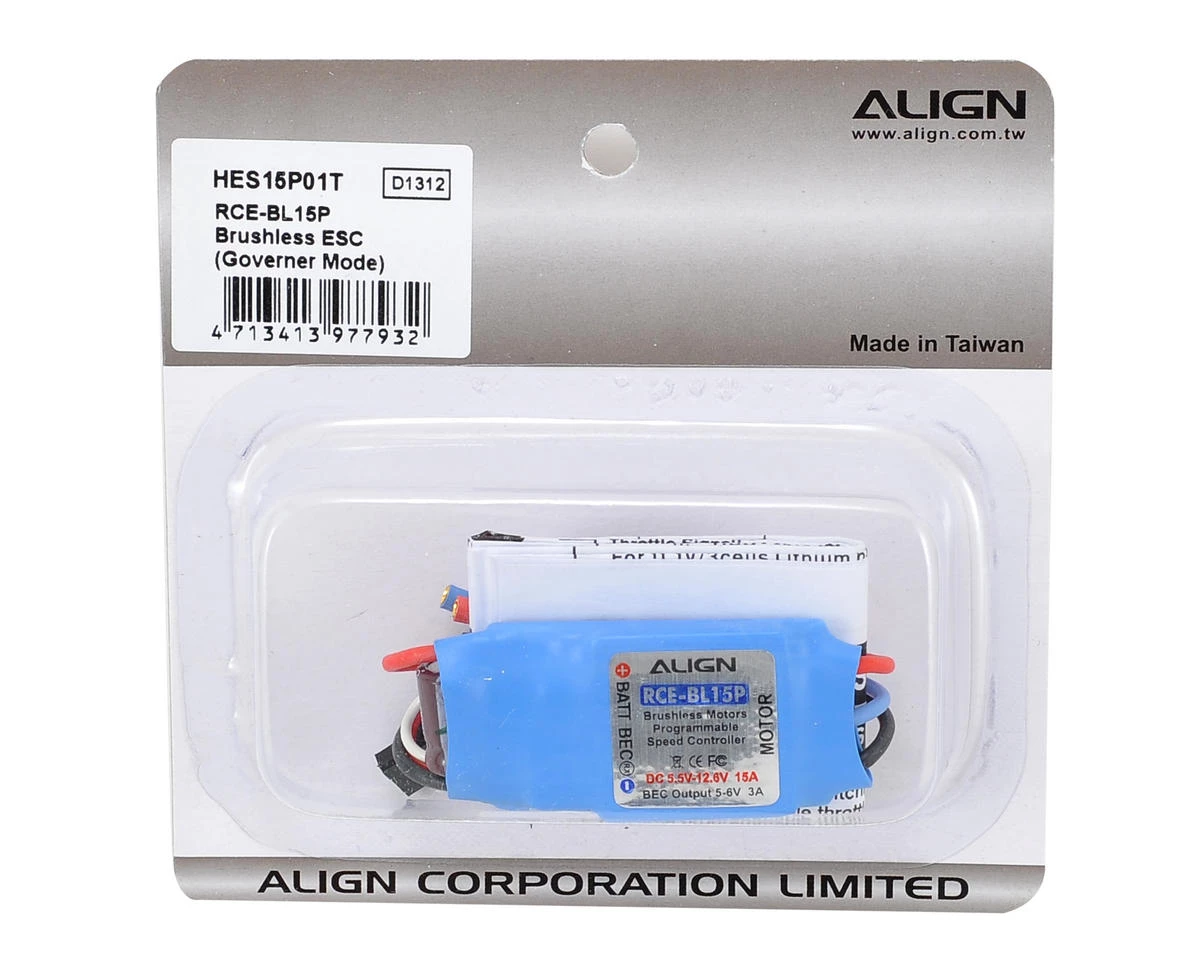

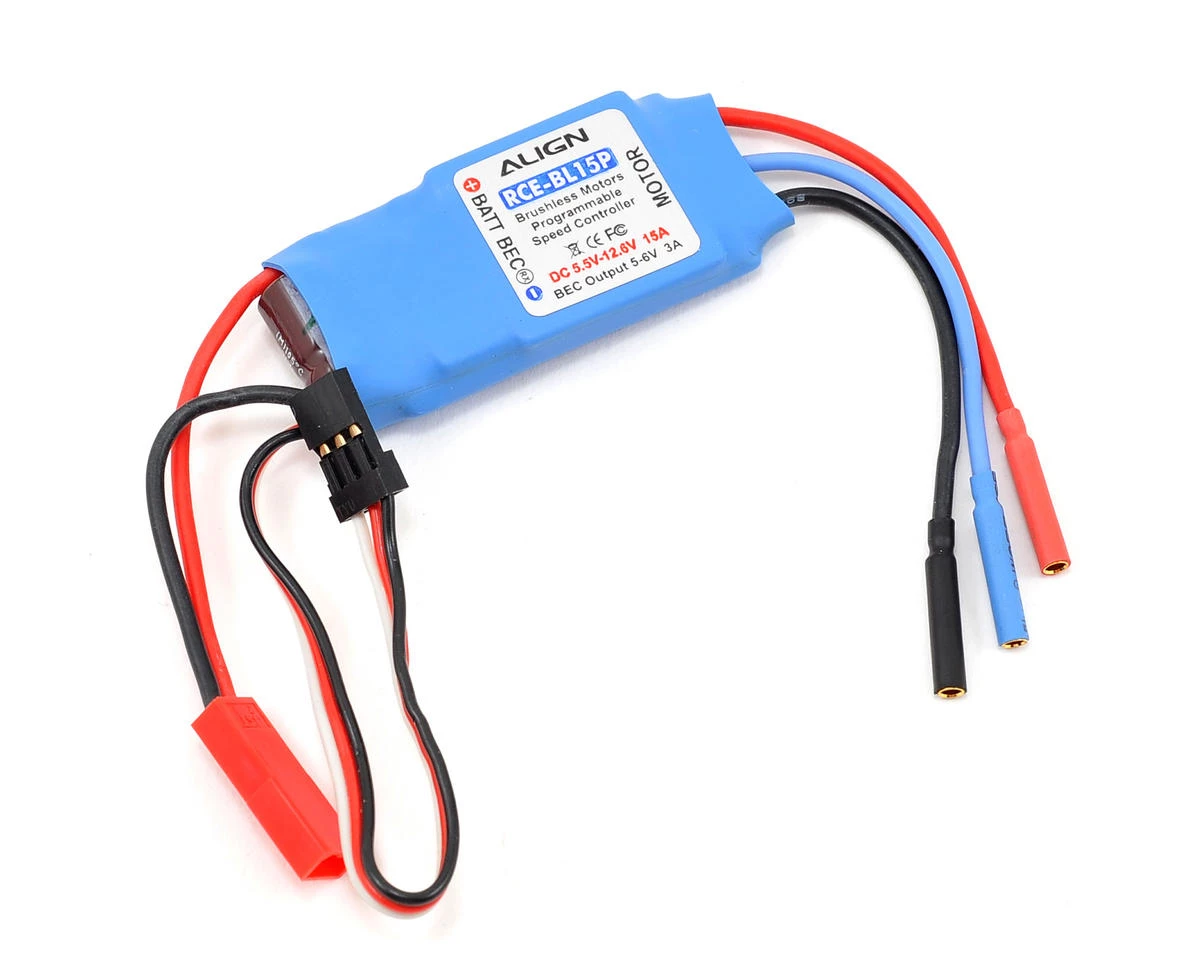

Align RCE-BL15P Brushless ESC w/Governer Mode

This is the Align RCE-BL15P Brushless ESC with Governor Mode. The RCE-BL15P features a 5-6V step-less adjustable BEC output that allows custom voltage settings to match the servo specifications. The BEC output utilizes a switching power system that is suitable for 7.4 – 11.1V (2S-3S) Lithium batteries, delivering a continuous current rating of 3A and a burst rating of 5A. It’s small and compact PCB design is lightweight and is easily installed into narrow frames. The heat sink provides optimum thermal performance, while the power inlet utilizes a Japanese made “Low ESR” capacitor to provide stable and reliable power. Additionally, he RCE-BL15P is compatible with 98% of all brushless motors currently on the market, with an ultra-smooth Soft Start motor start function and Governor Mode, three programmable throttle speed settings that deliver quick throttle response, and 200 step throttle resolution, so the RCE-BL15P delivers great throttle response and control.

Features:

• 5-6V step-less adjustable BEC output
• BEC output suitable for 7.4-11.1V (2S-3S) battery, with 3A continuous current rating and 5A burst
• Three programmable throttle speed settings
• Soft Start and Governor Mode
• Small and compact PCB design
• Large heat sink
• Compatible with 98% of all brushless motors
• Ultra-smooth motor start
• Japanese made “Low ESR” capacitor
• 200 step throttle resolution

Specifications:
Continuous Current: 15 Amps with proper air flow
Surge Current: 20 Amps
Supporting Motor Types: 2 poles to 10+poles in/outrunner brushless motors
Supporting Maximum RPM: 2poles=>190,000rpm
Supporting Input Voltage: 5.5V~12.6V
BEC Output Voltage: 5-6V step-less adjustment
Supporting Battery Types: Li-Po 2~3 cells
Size: 47.6x23x9.3mm
Weight: 16.4g

Includes:

• (1) RCE-BL15P Brushless ESC
• (3) ALIGN standard 4mm socket terminal

This product was added to our catalog on May 7, 2013
