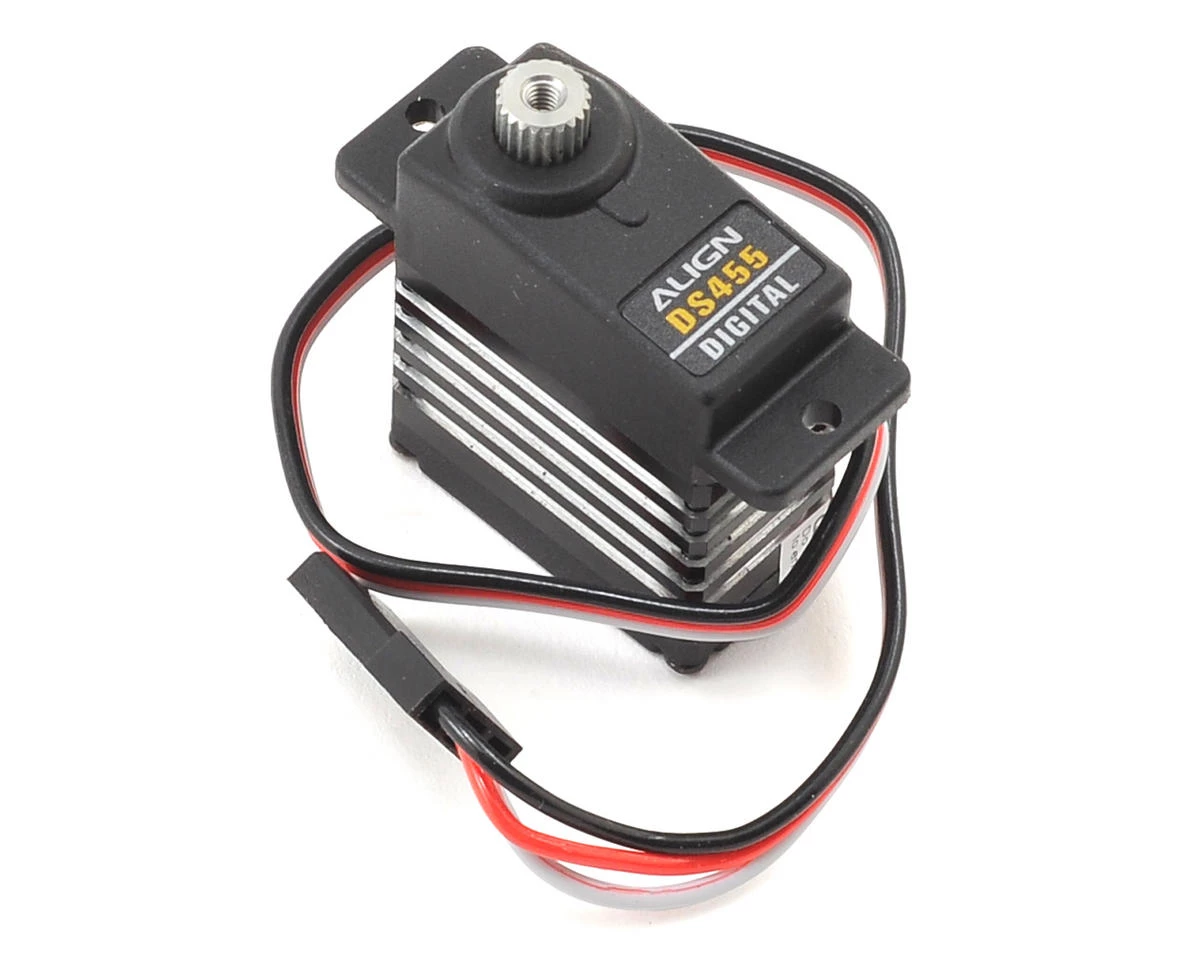

Align DS455 Metal Gear Digital Micro Tail Servo (High Voltage)

This is the Align DS455 Metal Gear Digital Mini Tail High Voltage Servo, for use with the Align T-REX 250 and 450 helicopters.

Features:

• Faster speed with high torque performance, allowing helicopter to perform with faster and higher precision.
• High rigidity, shock resistant metal gears with high strength composite alloy gears with durable structure characteristics.
• Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
• Supports digital & analog control signal.
• Powerful and precise servo, suitable for T-Rex 250/450 rudder use.
• Supports 8.4V high voltage input to provide optimal speed and torque performance of the servo.

Specifications:
Stall torque: 2.2kg.cm(6.0V); 2.9kg.cm(8.4V)
Motion speed: 0.05sec/60°(6.0V); 0.04sec/60°(8.4V)
Rating voltage: DC 6.0-8.4V
Temperature range: -20°C ~ +60°C
Dimension: 23 x 12 x 31.3mm
Weight: 17.3g

Includes:

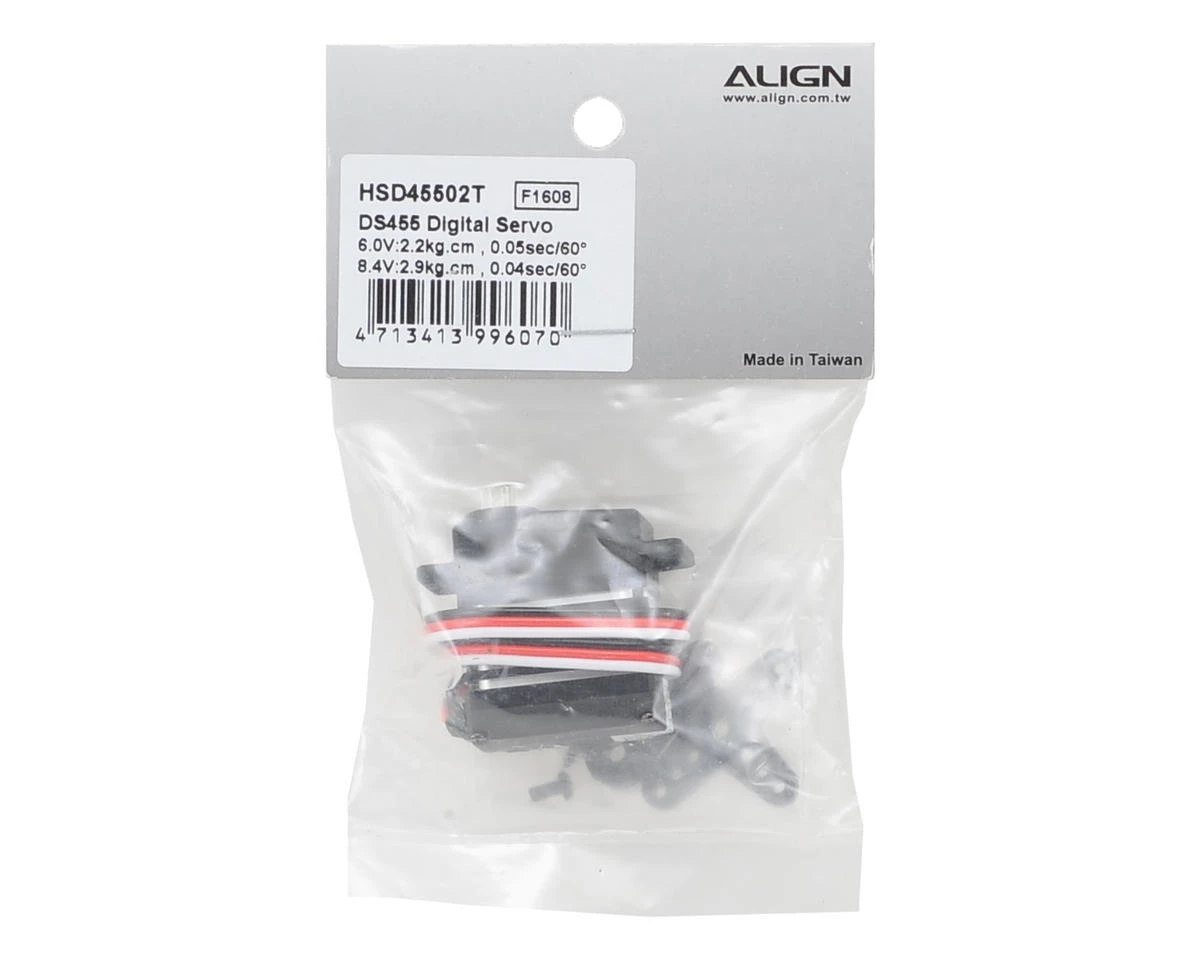

• (1) DS455 Digital Servo

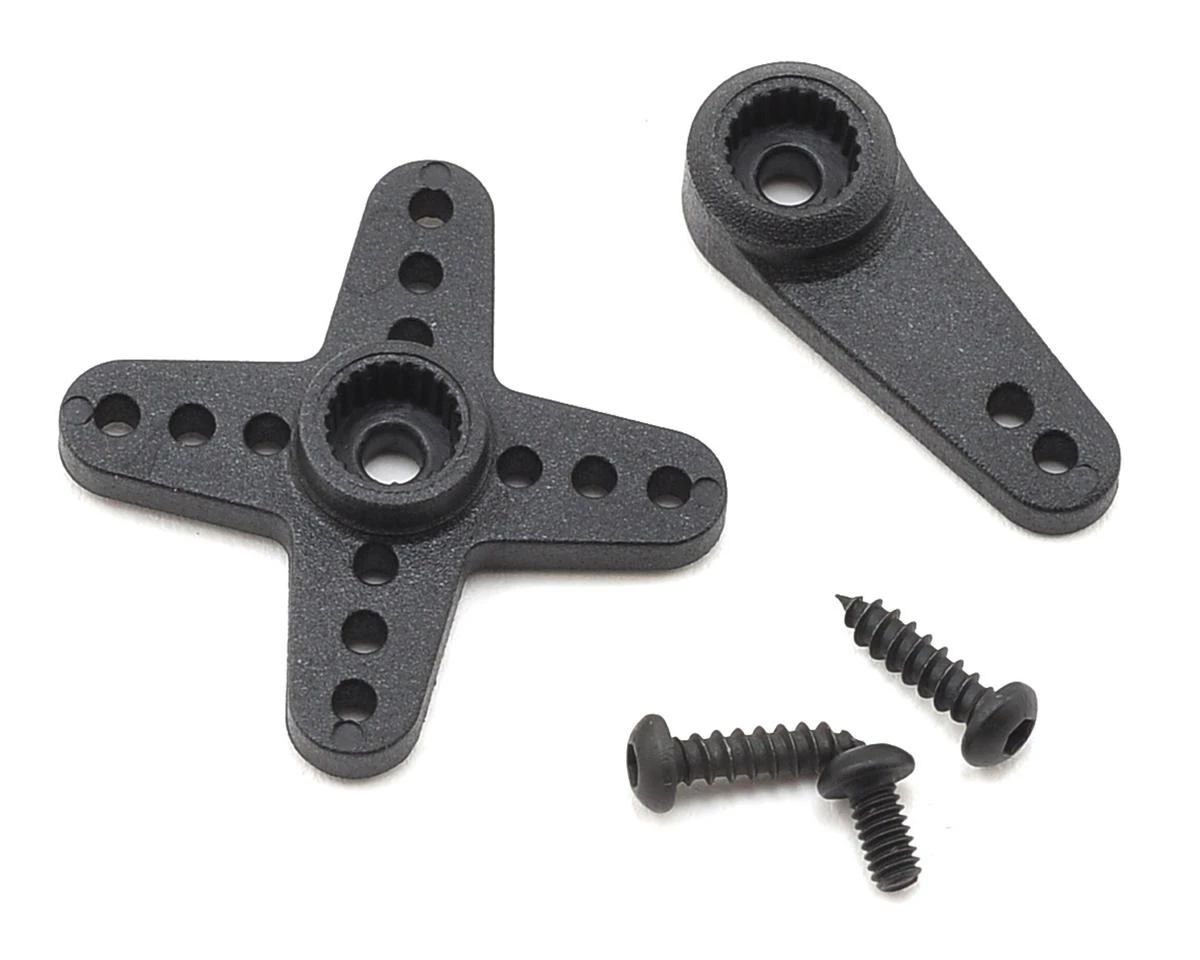

• (2) Socket Button Head Self Tapping Screw
• (1) Socket Screw
• (2) Servo Arm
