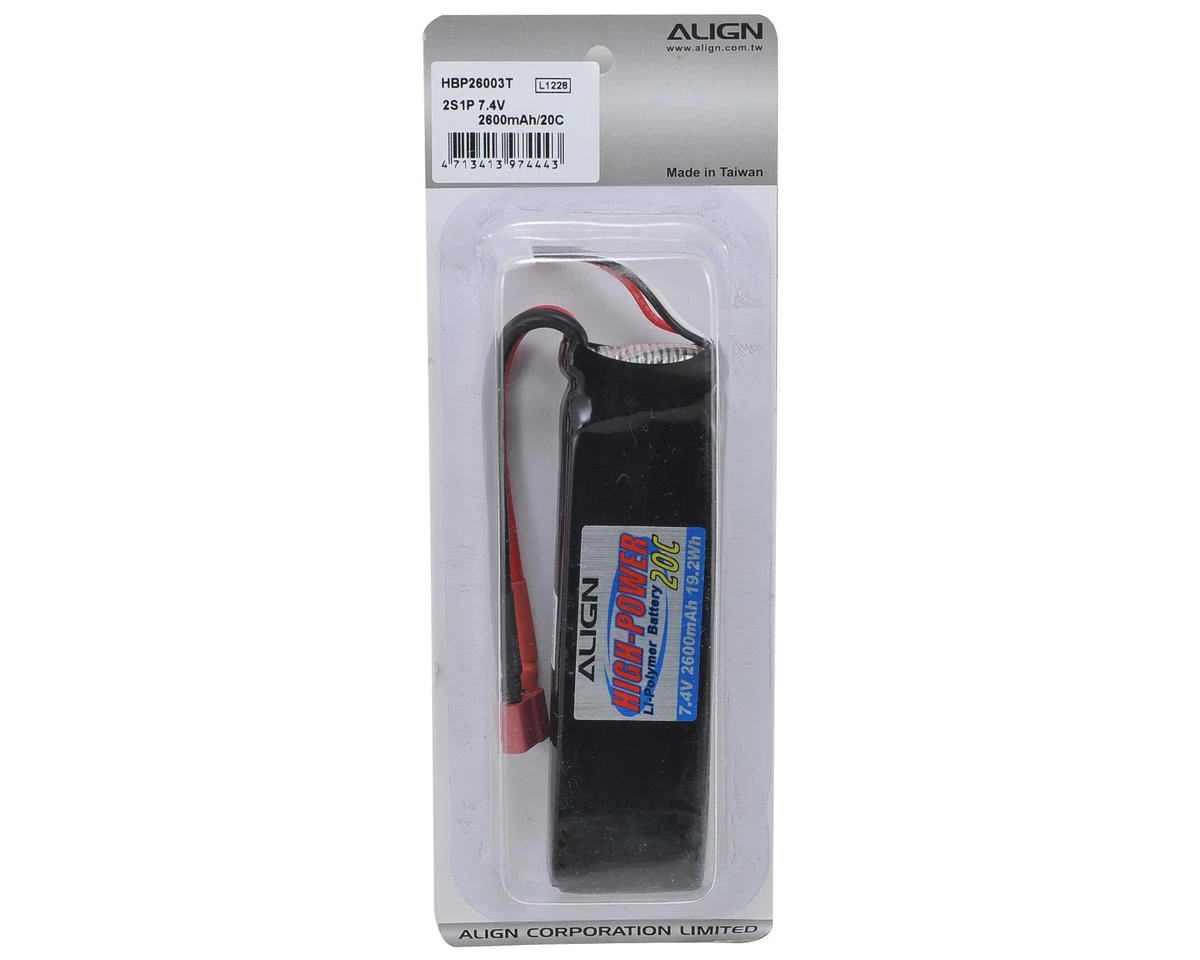

Align 2S1P LiPo Battery 20C (7.4V/2600mAh) w/T-Style Connector

This is the Align 2S1P, 20C, 2600mAh Li-Polymer Battery Pack. This battery pack can work great with helicopters, planes or any application requiring a battery of these specifications.

Features:

• High efficient and high discharge, and a inspection machine is used to match packs
• Long life cycle; 95% at 100 cycles

Specifications:
Max Continuous Discharge: 20C
Burst Discharge: 30C
Nominal Operating Temperature: Approx. 40-55°C (104-131°F) (within 80% of rated discharge)
Maximum Temperature: 80°C (176°F)
Output: 7.4V(2S1P)2600mAh
Dimension: 33x112x19mm
Weight: 110g (not including connectors)
Wire: 20AWG w/heat-resistant silicone up to 200°C (392°F) & 45 Amp current

Note: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in over heated batteries. Discharging capacity can’t exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use the battery that has too low a voltage.

Do not expose batteries to sunshine or store/charge batteries at the temperature above 35°C or in a closed car. The high temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging or racing, do not charge the battery until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.

This product was added to our catalog on December 20, 2012
